WORK LANVEC LS10 19 inch STEP RIM – GR Silver Cut Clear

商品番号: WORK-LVLS10-2P-19-GRP-8.0-SR

WORK LANVEC LS10 19 Inch STEP RIM

¥88,275 ¥106,705 保存 ¥18,430

配送料はチェックアウト時に計算されます

Width: 19×8.0J
Colour: GR Silver Cut Clear (GRP)

The WORK LANVEC LS10 in 19 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width and disc colour here, then tell us the inset you want from WORK's table below, and WORK builds the wheel to that spec.

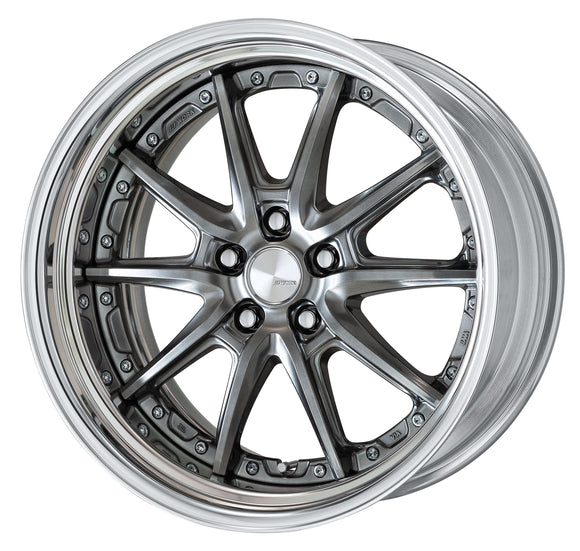

WORK photographs GR Silver Cut Clear, Glim Black at this exact size and rim type.

What this page covers

Model WORK LANVEC LS10
Construction 2-piece
Diameter 19 inch
Rim type STEP RIM
Disc colours GR Silver Cut Clear (GRP), Glim Black (GTK)
Widths 19×8.0J to 19×12.5J (10 widths)
Disk types O-Disk (DEEP RIM)
P.C.D. O-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. Not offered on this model
Hub height clearance O-Disk 41 mm
Load rating WORK prints no JWL rating for this size and rim type
Air valve V24C
Rim finish Buff anodised (standard)
WORK catalogue code LST-SR・HRN

What you choose on this page

  • Disc colour and width — in the variant picker above.
  • Inset — enter it in the inquiry form below, using the table below. Pick either one of WORK's fixed standard insets or any inset inside the order range — the price is the same.
  • Quantity — the price shown is for one wheel.

Insets — 19 inch STEP RIM

Width O-Disk — DEEP RIM
hub height clearance 41 mm · 5H-100(60), 5H-114.3(73.3)
Standard inset
fixed, same price 		Order inset
19×8.0J +45rim depth 55 mm / +35rim depth 65 mm +49 to +20rim depth 51–80 mm
19×8.5J +45rim depth 62 mm / +35rim depth 72 mm +56 to +13rim depth 51–94 mm
19×9.0J +45rim depth 68 mm / +35rim depth 78 mm +62 to +7rim depth 51–106 mm
19×9.5J +45rim depth 74 mm / +35rim depth 84 mm +68 to +1rim depth 51–118 mm
19×10.0J +35rim depth 91 mm +75 to -6rim depth 51–132 mm
19×10.5J — +81 to -12rim depth 51–144 mm
19×11.0J — +85 to -18rim depth 53–156 mm
19×11.5J — +85 to -25rim depth 60–170 mm
19×12.0J — +85 to -31rim depth 66–182 mm
19×12.5J — +85 to -37rim depth 72–194 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C).
  • A buff-anodised rim is the standard finish.
  • Below 67 mm of rim depth the disc sits proud of the rim mating face — and WORK adds that there is no protrusion past the rim flange.
  • Please ask us about the nuts or bolts you intend to use.
  • WORK offers free TPMS processing on this model, excluding 18 inch in 8.0J and narrower widths. Tell us if you need TPMS and we will confirm the sensor for your exact specification with WORK.
Fitment. Please choose your size and offset at your own discretion. Wheel regulations differ by country, and how far a wheel sits outside the fender depends on ride height and personal preference. We are glad to advise — ask us before you order — but the final choice of size and offset rests with the customer. Any vehicle examples shown are reference sizes only.

お見積り・適合確認のお問い合わせ

ご検討中の仕様と、装着するお車についてお知らせください。ご注文を確定する前に、当店がWORKに適合を確認します。このフォームはお問い合わせ専用です。ご注文にはならず、カートにも追加されません。

このページで選択中の仕様

WORK LANVEC LS10 19 Inch STEP RIM

19×8.0J / GR Silver Cut Clear (GRP)

SKU: WORK-LVLS10-2P-19-GRP-8.0-SR

ご連絡先

WORKホイールは受注生産です。当店からのご提案は参考情報で、基本的に純正（OEM）状態のお車を前提としています。ビッグブレーキキット装着車は確認できる場合がありますが、ワイドボディや車高調の仕様は確認が難しくなります。最終的な仕様はお客様ご自身でご判断ください。生産開始後のキャンセルはお受けできません。輸入関税・税金は、輸入時に別途ご請求となります。
