WORK EMOTION T5R 18 Inch

The WORK EMOTION T5R in 18 inch, built to order in Japan. A one-piece WORK wheel with fixed insets: choose the width, the colour and the inset here. On this model the inset you pick also settles the taper shape of the face, the P.C.D.s the wheel can be drilled for and the centre-cap clearance, so everything you need to check fitment is in the picker above and in the table below.

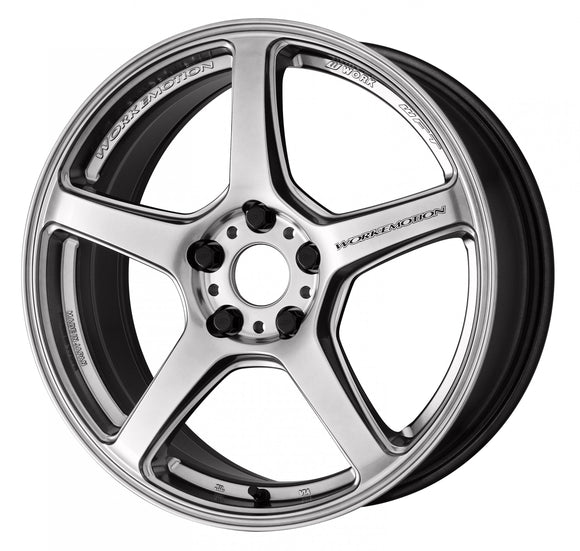

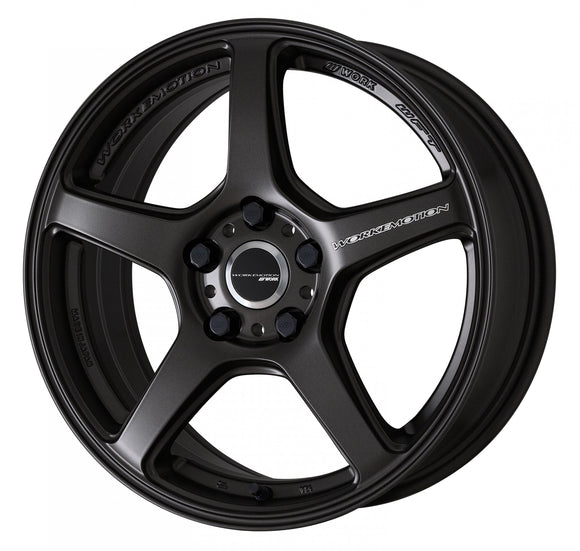

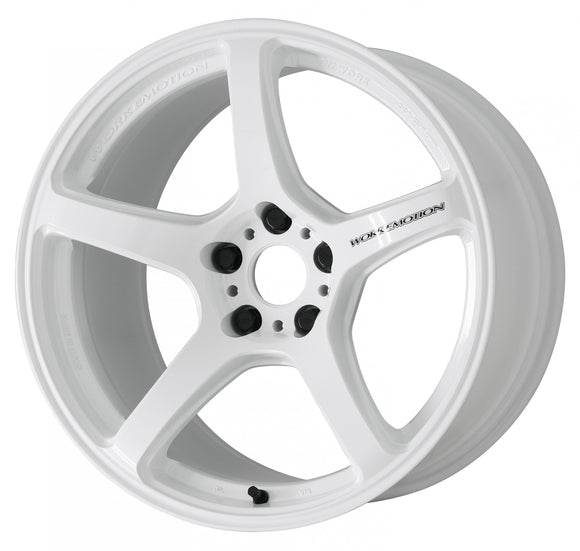

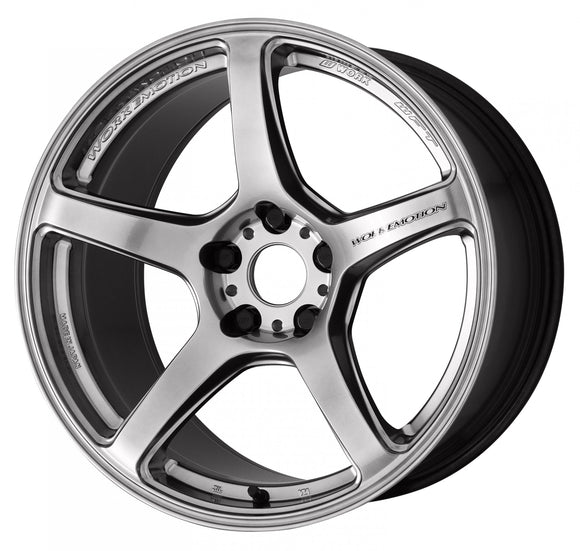

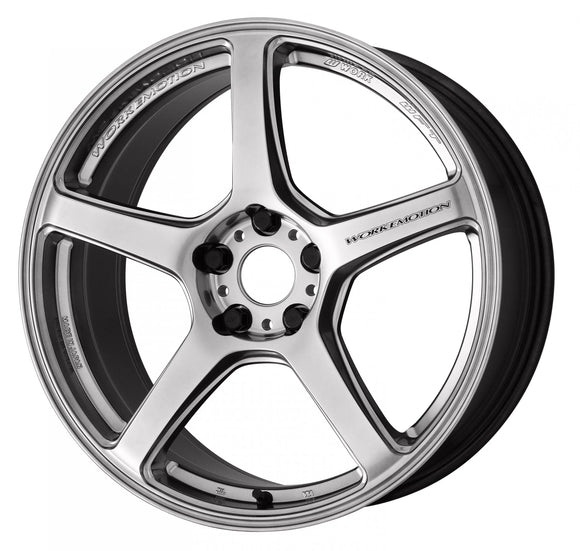

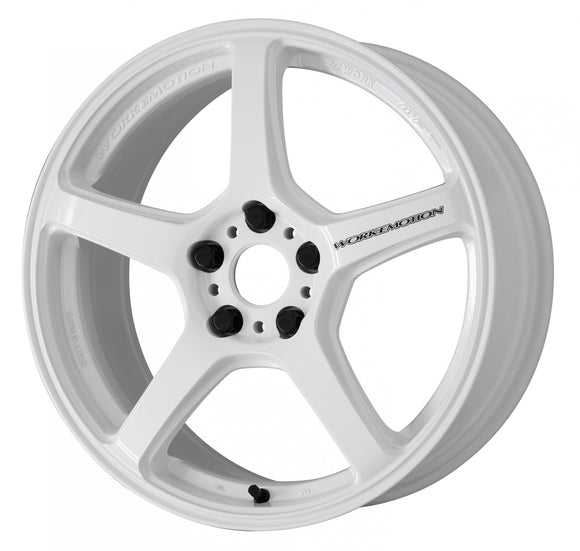

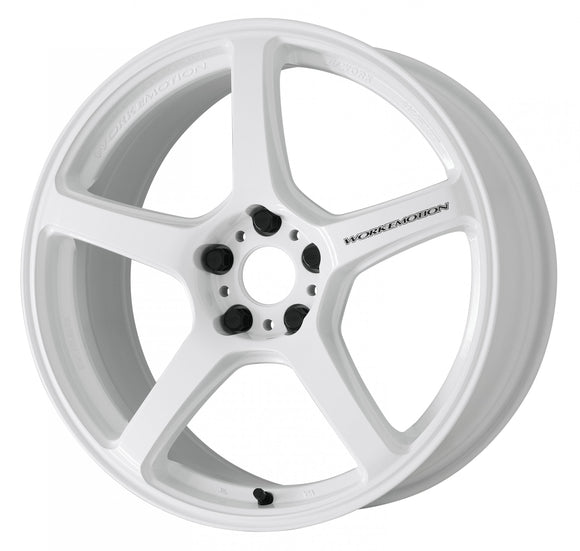

WORK photographs Ice White and Glow Silver, in the Semi and Ultra Deep tapers at this exact diameter and rim type. It publishes none of the Semi taper in Mat Graphite; and the Middle taper in Ice White and Glow Silver at this size, so for those the page shows WORK's own photography of another size as a finish reference, labelled as such in each image: the Semi taper in Mat Graphite — from WORK's 17 inch NORMAL wheel; the Middle taper in Ice White and Glow Silver — from WORK's 19 inch NORMAL wheel. The finish in every borrowed photograph is the one you are choosing here; what differs is the diameter. WORK publishes no photograph of the Middle taper in Mat Graphite; the Deep taper in Mat Graphite, Ice White and Glow Silver; and the Ultra Deep taper in Mat Graphite anywhere on this model, at any size, so this page carries none for them — those finishes are sold, but WORK has never photographed them.

What this page covers

What you choose on this page

• width, colour and inset — all three in the variant picker above. Each inset in the picker names its taper shape, the P.C.D.s it can be drilled for and its FLAT TYPE / HIGH TYPE centre-cap clearance.
• Nothing to specify in the order notes. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
• Quantity — the price shown is for one wheel.

Widths, insets, tapers, clearances and P.C.D.s — 18 inch

Centre caps — optional, not included

WORK supplies these wheels with one air valve (S27A2B, black) and one sticker per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

• Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
• The clearance figures in the table above are WORK's reference values from the mounting face: F to the FLAT TYPE cap, H to the HIGH TYPE cap. On some hub shapes the cap can still touch even below the figure shown.
• WORK notes that on some vehicles the centre cap cannot be fitted at all.
• Ask us and we will add the items you want to the order.

Notes

• Price is per wheel. Built to order by WORK in Japan; allow for production time.
• Each wheel comes with one air valve (S27A2B, black) and one sticker. The centre cap is not included — it is an optional item, listed above.
• This is a one-piece wheel. The insets in the table are the fixed insets WORK builds; unlike WORK's two-piece models there is no inset-to-order range and no rim depth to choose — where WORK prints a rim depth it is fixed for that width.
• P.C.D. availability is per inset, not per width. One width can offer different P.C.D.s at different insets, so read the row for the inset you are ordering rather than the width.
• 5H-100(60) is offered on 18×7.5J at +48 and 18×8.5J at +45, and on no other combination on this page.
• Special P.C.D. is not offered on this model. WORK prints no 特殊P.C.D. column and no up-charge anywhere on the spread.
• WORK prints on this model's big-caliper fitment guide that 5H-100 is a setting on some insets only of 18×7.5J and 18×8.5J; and there is no 5H-100 setting at all on 18×9.5J and 18×10.5J. The Standard and Special P.C.D. columns of the table above are the per-inset answer for this diameter.
• 18×7.5J and 18×8.5J: because of the disc design the disc stands 7 mm proud of the rim flange.
• 18×9.5J and 18×10.5J: because of the disc design the disc stands 4 mm proud of the rim flange.
• Hub height clearance. The F figure (FLAT TYPE cap) and the H figure (HIGH TYPE cap) are WORK's reference values from the mounting face. Even below the figure shown, some vehicle hub shapes can still touch the cap.
• WORK notes that the taper shapes can look slightly different in colour to one another, because the face geometry differs.
• TPMS. WORK prints no size exclusion for TPMS on this model's spread — it gives only its TPMS reference (TPMS対応の詳細▶P.185). Ask us and we will confirm the sensor for your exact size with WORK before you order.
• WORK prints no JWL load rating on this model's spread, so this page states none.
• WORK's printed WEIGHT (Kg) figures quoted above are the bare wheel, as a "from" figure. They are reference values, not the shipping weight of the packed wheel.
• WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
• All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
