WORK MEISTER S1 1PIECE SUV 20 inch NORMAL, Ashed Titanium (AHG) — WORK factory photo

SKU: WORK-MSTS1V-1P-20-AHG-9.0J-P55-6H1397

WORK MEISTER S1 1PIECE SUV 20 Inch

¥81,172 ¥98,120 Save ¥16,948

Shipping calculated at checkout

Width: 20×9.0J
Colour: Ashed Titanium (AHG)
Inset: +55 · 6H-139.7 · FACE TYPE 1 · rim depth 48 mm / centre depth 23 mm

The WORK MEISTER S1 1PIECE SUV in 20 inch, built to order in Japan. A one-piece wheel from WORK's MEISTER SUV range, with fixed insets: choose the width, the colour and the inset here. Pick the width first, then the inset. The table below gives every width and inset at this diameter with its bolt pattern, its WORK face type, WORK's rim and centre depths and the vehicles WORK itself lists against it.

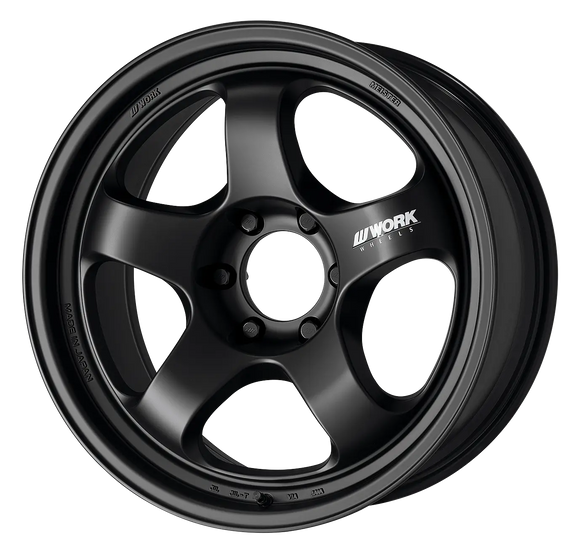

WORK photographs Ashed Titanium and Matte Black at this exact diameter and rim type. Every photograph on this page is WORK's own, of 20 inch NORMAL — none is borrowed from another size.

What this page covers

Model WORK MEISTER S1 1PIECE SUV
Construction One-piece
Diameter 20 inch
Rim type NORMAL
WORK prints this table's heading as 1PIECE/NORMAL.
Disc colours Ashed Titanium (AHG), Matte Black (MBL)
Widths 20×9.0J — 2 entries in the pickerWORK prints 20×9.0J twice — once plain and once marked for overseas — with different bolt patterns, insets and vehicle lists, so both appear in the picker above.
Insets 5 fixed width-and-inset combinations at this diameter, each with its own bolt pattern and face type. See the table below.
H-P.C.D. 5H-150(110.2), 6H-139.7
Each inset is drilled for one bolt pattern only; the pattern is part of the inset you pick.
Special P.C.D. Not offered. WORK prints no 特殊P.C.D. row and no up-charge anywhere on this spread.
Face types FACE TYPE 1, FACE TYPE 2, FACE TYPE 3
WORK's own face-shape codes, taken from the specification table.
Load rating 5H-150 at 18/20 inch: JWL (VIA-P860KG) and JWL-T (VIA-T890KG)
6H-139.7: JWL (VIA-P800KG) and JWL-T (VIA-T955KG)
Air valve V29K2
TPMS WORK prints its TPMS badge on this model's masthead with no size exclusion, so TPMS is supported at this size. Ask us and we will confirm the sensor with WORK before building.
Mounting bolts WORK prints M14 標準対応 on this model's masthead — M14 mounting bolts are supported as standard.
Centre cap Optional item — not included, and WORK builds it for P.C.D. 6H-139.7 only (see below)The 5H-150(110.2) inset has no centre cap — WORK makes none for that pattern.
Supplied with each wheel one air valve (V29K2) and one disc sticker
Wheel weight, WORK's figure WORK prints no WEIGHT column on this spread, so this page quotes none.
WORK catalogue code MST-S1V

What you choose on this page

  • Width, colour and inset — in the variant picker above. The inset you pick also settles the bolt pattern, the face type and the rim and centre depths.
  • Two entries at 20×9.0J. WORK prints that size twice in its table, the second marked for overseas, and the two rows carry different insets, bolt patterns and vehicle lists. The wording is WORK's own; both are offered here, so pick the entry whose row in the table below matches your car.
  • Nothing extra to specify — just choose the inset in the inquiry form. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
  • Quantity — the price shown is for one wheel.

Widths, insets and WORK's vehicle list — 20 inch

The right-hand column is WORK's own 参考車両 application list, transcribed exactly as WORK prints it against each inset. Nothing has been added to it and nothing has been generalised: if a vehicle is not named here, WORK does not name it for this size.

Width Inset Face type H-P.C.D.
centre bore in brackets, where WORK prints one 		Rim depth / centre depth Vehicles WORK lists
WORK's own 参考車両 column
20×9.0J +55 FACE TYPE 1 6H-139.7 48 mm / 23 mm LX700h★ / LX600 / GX550 / LAND CRUISER 300 / LAND CRUISER 250
+40 FACE TYPE 2 6H-139.7 48 mm / 28 mm LX700h( Tuner size)★ / LX600( Tuner size) / GX550( Tuner size) / LAND CRUISER 300( Tuner size) / LAND CRUISER 250( Tuner size)
20×9.0J (for overseas) +40 FACE TYPE 2 5H-150(110.2) 48 mm / 28 mm LAND CRUISER 100(Tuner size) / LAND CRUISER 200(Tuner size)
+18 FACE TYPE 3 6H-139.7 48 mm / 43 mm LAND CRUISER PRADO(150) / FJ CRUISER / HILUX(125) / HILUX SURF(215) / TRITON(GSR)
±0 FACE TYPE 3 6H-139.7 48 mm / 53 mm LAND CRUISER PRADO(Tuner size) / TRITON(GSR)(Tuner size)
  • WORK prints its own caveat over that column: (※すべてが参考車両への推奨サイズではありません。) — not every vehicle and size pairing listed is a recommended size for that vehicle. Please check your car with us before ordering.
  • ★ against LX700h — WORK prints: ★「LX700h(7人乗り)」「LX700h　OVERTRAIL +(7人乗り)」の2グレードは対応不可となります. The two 7-seat grades, LX700h (7-seater) and LX700h OVERTRAIL+ (7-seater), are not compatible.
  • Some rows are marked (Tuner size). That is WORK's own wording, reproduced here as printed — ask us and we will check with WORK what it means for your car before you order.
  • Rim depth is the figure WORK prints in round brackets and centre depth the figure in square brackets, both in mm, measured on this model.

Optional and replacement items

The centre cap is an optional item on this model — it is not included, and is bought separately, one per wheel.

Item WORK part no. WORK list price Type
Centre cap (Matte Black) No.120290 ¥6,050 each Optional
Air valve (black)V29K2 No.180085 ¥1,650 each Replacement
Stickerdisc sticker, white No.130009 ¥550 each Replacement
  • All yen figures are WORK's own tax-included Japanese list prices. Ask us and we will add the items you want to the order.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • WORK gives the cap's internal dimensions as 106 mm hub diameter and 53 mm hub height clearance.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V29K2) and one disc sticker. The centre cap is not included — it is an optional item, listed above.
  • Load ratings, as WORK prints them for this size: 5H-150 at 18/20 inch: JWL (VIA-P860KG) and JWL-T (VIA-T890KG); 6H-139.7: JWL (VIA-P800KG) and JWL-T (VIA-T955KG).
  • Special P.C.D. is not offered on this model. WORK prints no 特殊P.C.D. row and no up-charge anywhere on the spread.
  • TPMS. WORK prints its TPMS badge on this model's masthead with no size exclusion, so TPMS is supported at this size. Ask us and we will confirm the sensor with WORK before building.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
Fitment. Please choose your size and offset at your own discretion. Wheel regulations differ by country, and how far a wheel sits outside the fender depends on ride height and personal preference. We are glad to advise — ask us before you order — but the final choice of size and offset rests with the customer. Any vehicle examples shown are reference sizes only.

Quotation and fitment inquiry

Tell us the specification you are considering and the vehicle it is for. Kurumaya Tokyo JAPAN Co. verifies fitment with WORK before confirming an order. This form is an inquiry, not an order: nothing is added to your cart.

Selected on this page

WORK MEISTER S1 1PIECE SUV 20 Inch

20×9.0J / Ashed Titanium (AHG) / +55 · 6H-139.7 · FACE TYPE 1 · rim depth 48 mm / centre depth 23 mm

SKU: WORK-MSTS1V-1P-20-AHG-9.0J-P55-6H1397

Your contact details

WORK wheels are built to order. Our recommendations are guidance only and are mostly based on the vehicle in its original (OEM) setup. We may be able to confirm fitment with a big brake kit, but wide-body and coilover setups are difficult for us to confirm. The final choice of specification rests with the customer, and an order cannot be cancelled once production has started. Import duties will be charged separately at the time of import.
